Product Self-regulating heating cable PSB

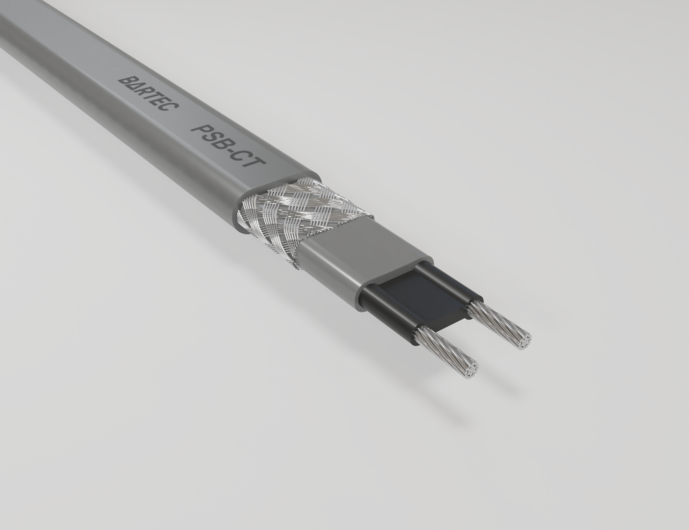

Self-regulating heating cable PSB

Low temperature, self-regulating parallel heating cable
07-5853-....

Benefits

  • Self-regulating
  • Can be cut at random length thanks to its parallel current supply
  • Corrosion-proof and resistant to effects of chemicals thanks to its protective jacket
  • Electrically and mechanically protected by a tinned copper braid
  • Simple installation thanks to its high flexibility and favourable dimension
Get a Quote

Marking

ATEX:
II 2G Ex 60079-30-1 IIC T6, T5 Gb
II 2D Ex 60079-30-1 IIIC T80 °C, T95 °C Db

IECEx:
Ex 60079-30-1 IIC T6, T5 Gb
Ex 60079-30-1 IIIC T80 °C, T95 °C Db

CSA:
Class I, Div. 2, Groups A, B, C, D
Class II, Div. 2, Groups E, F, G
Class III

Ambient Temperature

Max. continuous operating temperature, energized +65°C
Max. continuous exposure temperature, de-energized +85°C

Certification

  • Cable Certificate ATEX
  • Cable Certificate IECEx
  • Cable Certificate UKEX
  • Attestation of Conformity
  • System Certificate ATEX
  • System Certificate IECEx
  • System Certificate CSA
  • Declaration of Conformity
  • Cable Certificate CCC

Description

The self-regulating heating cable PSB is suitable for frost protection and temperature maintenance on pipes and vessels at low process temperatures in industry and hazardous areas.
The power output of the PSB varies depending on the ambient temperature. If the ambient temperature increases, the heating output will be reduced.
While the polyolefin protective jacket is for aqueous, inorganic chemicals, the fluoropolymer protective jacket is suitable for organic chemicals.

Technical Data

Nominal voltage AC 208 V to 277 V
AC 110 to 120 V
Max. continuous operating temperature, energized +65 °C
+150°F
Max. continuous exposure temperature, de-energized +85 °C
+185°F
Min. installation temperature -55 °C
-67°F
Min. start-up temperature -55 °C
-67°F
Temperature class T6: 3PSB2, 5PSB2
T5: 8PSB2, 10PSB2
Max. braid resistance 18,2 Ω/km
Dimensions with braiding and jacket 11.8 x 5.8 mm with polyolefin protective jacket
11.6 x 5.6 mm with fluoropolymer protective jacket
0.46 in x 0.22 in with polyolefin protective jacket
0.46 in x 0.23 in with fluoropolymer protective jacket
Min. bending radius 25 mm
0.98 in
