Product BARTEC MC9400/9450EX2 Mobile Computer

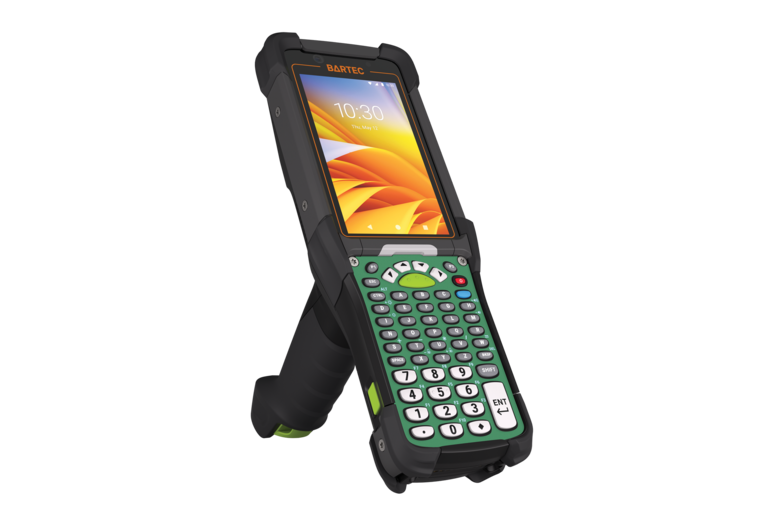

BARTEC MC9400/9450^EX2 Mobile Computer

for Zone 2/22 and Class I,II,II Division 2

B7-A2F*-************

Benefits

World-class proven ultra-rugged design
New Qualcomm platform delivers 2.5x times more processing power and support to Android 18
Latest in wireless connectivity with Wi-Fi 6E and 5G (data only)
Unmatched scanning performance with up to 30.5m reading range
New optional front and rear cameras

Get a Quote

Marking

ATEX:
II 3G Ex ic op is IIB T4 Gc
II 3D Ex ic op is IIIC T135 °C Dc IP65

IECEx:
Ex ic op is IIB T4 Gc
Ex ic op is IIIC T135 °C Dc IP65

NEC:
Class I, Div. 2, Groups A, B, C, D;
Class II, Div. 2, Groups F, G;
Class III; T4

Ambient Temperature

Operating Temperature
-20°C to +50°C (-4°F to 122°F)

Storage Temperature
-40°C to +70°C (-40°F to 158°F)
(without battery)

Certification

IECEx Zone 2/22
- EN
ATEX Zone 2/22
- DE
- EN

Product Video

Description

The next evolution in the ultra-rugged MC9000 series.

Built for the toughest environments, the BARTEC MC9400/9450^EX2 is the next evolution in the ultra-rugged MC9000 Mobile Computer Series, now with more power, advanced scanning, Wi-Fi 6E, and private and public 5G support. This mobile device is the ultimate tool to help streamline and error-proof processes in the toughest environments, from manufacturing and warehousing to ports and yards. It is faster, ready to power the new generation of industrial applications, and scanning is easier with the world’s greatest scanning range.

The BARTEC MC9400/9450^EX2 Mobile Computer is approved for ATEX and IECEx Zone 2/22 and NEC500 Class I, II, III Div.2.

Android is a trademark of Google LLC.

Hardware Specifications

Processor: Qualcomm® 4490 Octa-Core; 2.4 GHz
Memory (RAM): 6 GB
Mass Storage: 128 GB
Display: 4.3" Display with LED Backlight
Resolution: 800 x 400 pixel, WVGA
Front Glass: Corning Gorilla glass
Touch Function: Capacitive Touch (Stylus, bare or gloved fingertip input)
Size (L x W x H): 88 mm x 240 mm x 189 mm (3.5 inch x 9.4 inch x 7.4 inch)
Weight (with battery): 743 g (1.64 lb)
Battery: Lithium-ion battery 3.6 V/7000 mAh (25.2 Wh)

Connectivity and Network

WLAN-WiFi: IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz) ; Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6
Bluetooth: Class 2, Bluetooth v5.3
NFC: ISO 14443 Type A and B; FeliCa and ISO 15693 cards
SIM (only MC9450^EX2 models): Dual SIM (Nano SIM + eSIM)
Wireless Connections (only MC9450^EX2 models): WiFi 6, 5G
Radio Frequency Band (only MC9450^EX2 models):
- 5G FR1, 4G, 3G
- Gigabit LTE-A; 5G NR Sub-6 (NSA, SA); LTE/NR Carrier Aggregation; supports private networking (LTE/5G)
GNSS (only MC9450^EX2 models): GPS, GLONASS, Galileo, QZSS Dual-Band GNSS — Concurrent L1/G1/E1 (GPS/QZSS, GLO, GAL) + L5/E5a/BDSB2a (GPS/QZSS, GAL) a-GPS Supports XTRA

Camera, Scanner and Audio

Back Camera: 16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard)
Front Camera: 8 MP
Barcode capture: SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology with green laser aimer
Voice & Audio: Speaker, microphone, PTT voice (internal speaker and Bluetooth wireless headset support)
Notifications: Audible tone; multi-color LED; haptic feedback

Additional Features and Accessories

Operating System: Android^TM 14
Operating Temperature: -20 °C to +50 °C (-4 °F to +122 °F)
Protection Class (IEC 60529): IP65
External I/O: USB 2.0 (bottom pogo connector) — high speed (host and client)
Sensors: Light Sensor, Magnetometer, Motion Sensor
Buttons: Trigger scan button; keypad scan button
Keypad:
- 29 Key Numeric/Calculation
- 43 Key Numeric/Function
- 53 Key AlphaNumeric STD
- 53 Key Terminal Emulation (VT)
Scope of Delivery: BARTEC MC9400/9450^EX2 Mobile Computer, Standard battery, Quick Start Guide, Mandatory accessories
Required (not included): Charging accessories
