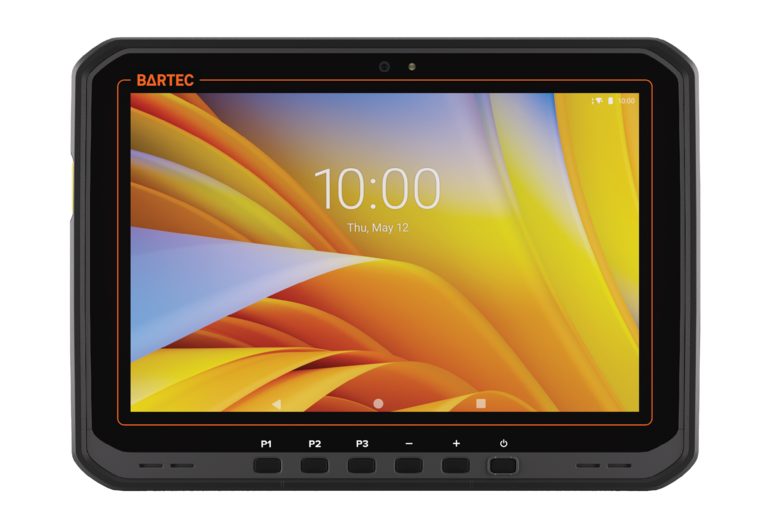

BARTEC ET60/65^EX2 Android Tablet

for Zone 2/22 and Class I,II,II Division 2

B7-T2E*-************

Benefits

Rugged design optimized for hazardous environments
Fast Qualcomm® 6490 processor delivers unmatched power and performance
10" super bright display
Meets any barcode scanning need with the optional SE55 scan engine
Fast and versatile wireless connectivity with Wi-Fi 6E and 5G options
Loaded with Zebra Mobility DNA, the industry‘s broadest suite of enterprise software

Get a Quote

Marking

ATEX:
II 3G Ex ic [op is] IIC T4 Gc
II 3D Ex ic [op is] IIIC T135 °C Dc IP 64

IECEx:
Ex ic [op is] IIC T4 Gc
Ex ic [op is] IIIC T135 °C Dc IP 64

NEC:
Class I, Div. 2, Groups A, B, C, D;
Class II, Div 2, Groups F and G;
Class III, Div. 2; T4
Zone 2, AEx ic [op is] IIC T4 Gc
Zone 22, AEx ic [op is] IIIB T135 °C Dc
Ex ic [op is] IIC T4 Gc
Ex ic [op is] IIIB T135 °C Dc

Ambient Temperature

Operating Temperature
-20°C to +55°C (-4°F to 131°F)

Storage Temperature
-40°C to +70°C (-40°F to 158°F)
(without battery)

Product Video

Description

The most versatile Android™ tablet for hazardous areas

Maximize productivity and business efficiency in hazardous areas with 10“ tablets that deliver more features, power, security, and ruggedness.
Co-engineered with Zebra Technologies, these tablets are built like a tank, ready to handle the dust, dirt, and grime in industrial environments.
When it comes to features, these workhorses are loaded with processing power, battery power, data capture power, Wi-Fi 6E and 5G connectivity options, and more. And Zebra Mobility DNA™ adds unmatched value with features that make the tablets easier to use and manage. When the job calls for an intrinsically safe tablet, no matter what features you need, the BARTEC ET60/65^EX2 Android Tablet delivers.

The BARTEC ET60/65^EX2 Android Tablet is approved for ATEX/IECEx Zone 2/22; NEC/CEC 500 Class I, II, III Div. 2; and NEC/CEC 505 Zone 2/22.

Android is a trademark of Google LLC.

Physical characteristics

Display: 10.1"; 1,000 nits; optically bonded to touchpanel
Resolution: 1900 x 1200 pixel, WVGA
Touchpanel: Multi mode capacitive touch with bare or gloved fingertip input or stylus; Corning® Gorilla® Glass
Size (W x L x H): 275 mm x 199 mm x 18.3 mm (10.8 inch x 7.8 inch x 0.7 inch)
Weight (with battery): 1,074 g (2.3 lb)

Performance characteristics

Processor: Qualcomm® 6490 octa-core; 2.7 GHz
Operating System: Android^TM 14
Memory (RAM): 8 GB
Mass Storage: 128 GB

Power

Charging: Through USB Type-C (USB PD3.0 compatible) port
Battery: Lithium-ion battery 4 V/8.920 mAh (36 Wh)

Connectivity and Network

WLAN-WiFi: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO; Wi-Fi 6E (802.11ax); Wi-Fi™ certified; Wi-Fi™ 6E Certified; Dual Band Simultaneous; IPv4, IPv6
Bluetooth: Bluetooth v5.2 Class 1, Bluetooth Low Energy (BLE)
NFC: ISO 14443 Type A and B; FeliCa and ISO 15693 cards
SIM (only ET65^EX2 models): 1x eSIM, 1x Nano SIM
Radio Frequency Band (only ET65^EX2 models): 5G FR1, 4G, 3G; supports LTE/5G private Networking
GNSS (only ET65^EX2 models): GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS–oncurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA

Camera, Scanner and Audio

Rear Camera: 16 MP autofocus; flash LED generates balanced white light
Front Camera: 8 MP; mechanical privacy shade
Barcode capture (optional): SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology
Voice & Audio: Stereo speakers and two microphones; audio headset supported through USB port or Bluetooth; speaker/microphone support
Notifications: Audible tone; 2x multi-color LEDs

Additional Features and Accessories

Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
Protection Class (IEC 60529): IP64
External I/O: 2x USB 3.1 Type A Ports; 1x USB 3.1 Type C Port (with Display Port 1.2 support); Docking connector (charge and data); Keyboard connector; 1x USB 2.0 (back I/O - host only)
Sensors: Ambient Light Sensor, Magnetometer, Motion Sensor
Buttons: Power; Scan; Up/Down (volume or brightness); three programmable keys
Scope of Delivery: BARTEC ET60/65^EX2 Android Tablet, Standard battery, Quick Start Guide
Required (not included): Charging accessories
