Product UAP Aluminium

UAP Aluminium

Enclosure for access points,radios and gateways w/external antennas for Zone 1


  • Designed for standard industrial access point,radios and gateways
  • 2 version of Ex d enclosures,
  • enclosure with and without window
  • up to 4 antennas
  • Xbeam antenna with up to 30 meter cable
Get a Quote


Ex II 2G Ex db IIC T6
Ex II 2D Ex tb IIIC T85°C to T200°C Db

Ex db IIC T6
Ex tb IIIC T85°C to T200°C Db

Ambient Temperature

-20 °C to +40 °C @ T6
(-4 °F to 104 °F @ T6)

-40 °C to +55 °C @ T4
(-40 °F to 131 °F @ T4)

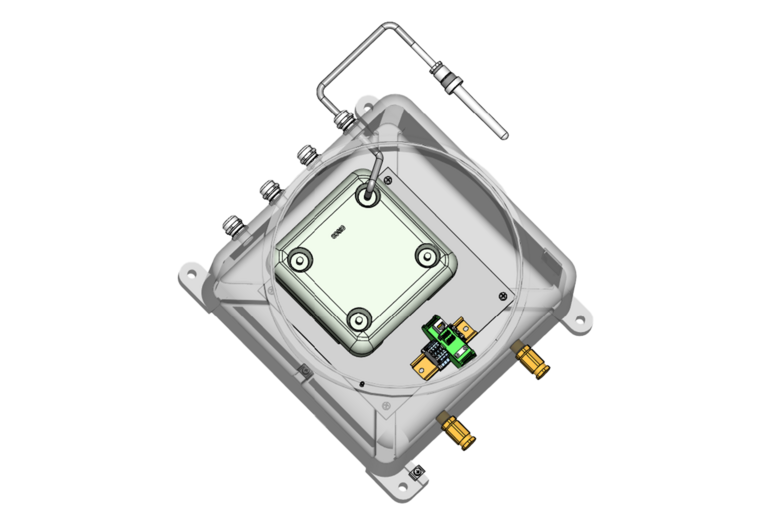

The Universal Ex d Access Point enclosure will quickly solveyour need for deploying permanent or temporarywireless networking in potentially hazardous locations.
The enclosure is suitable for any communication device requiringwireless communication. The electrical connection is with Ex d cable glands for direct entry. At this Access Point solution we are working with an external Antennas concept which are either connected direct to the enclosure or via cable to have a flexible distribution in different areas available.

Technical Data

Design see datasheet
Dimensions see datasheet
Weight see datasheet

Data Sheets

  • Data Sheet - Universal Access Point Enclosure
