Product GUBX empty enclosure

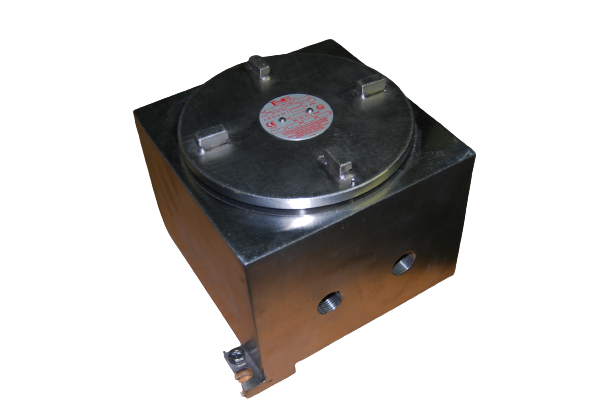

GUBX empty enclosure

Ex d IIC stainless steel enclosure for zone 1/2 - 21/22


  • IIC
  •  IP66
  • Stainless Steel
  •  Possibility of glass window
Get a Quote


(Ex II 2 G) Ex db IIC T6…T3
(Ex II 2 G) Ex db [ia/ib IIA or IIB or IIC Ga/Gc] IIC T6..T3
(Ex II 2 D) Ex tb IIIC T85°C…T200°C
(Ex II 2 D) Ex tb [ia Da/ib/ic Dc] IIIC T85°C..T200°C

Ex db IIC T6...T3 Gb
Ex db [ia IIA or IIB or IIC Ga] IIC T6...T3 Gb
Ex db [ib IIA or IIB or IIC] IIC T6...T3 Gb
Ex db [ic IIA or IIB or IIC Gc] IIC T6...T3 Gb
Ex tb IIIC T85°C...T200°C Db
Ex tb [ia Da] IIIC T85°C...T200°C Db
Ex tb [ib] IIIC T85°C...T200°C Db
Ex tb [ic Dc] IIIC T85°C...T200°C Db

Ambient Temperature

-60 °C to +80 °C (standard)



Flameproof enclosures BARTEC C or GUBX series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
These enclosures are designed to contain regular industrial electrical components or equipment on the mounting plate like fuses, transformers, circuit breakers, relays, PLC etc. and to be fully integrated in the hazardous area as control or distribution panel.

Technical Data

Protection class IP 66 (IEC/EN 60529)
Material Enclosure material: Stainless Steel AISI316L
Surface treatment: Internal/External unpainted
External powder type painted RALxxxx (optional)
Internal anti-condense painting RAL2004 (optional)
Internal mounting plate : Stainless Steel AISI316L
Weight see data sheet
Dimensions see data sheet
Accessories O-Ring silicon rubber gasket
Glass round/square shape window (optional)
Drain and breather valves (optional)
Quantity of cable entries see data sheet
Voltage Max. rated voltage : 13kV (AC) / 750V (DC)
Current Max. rated current : 2000A
Imapct test 7 Joule for metallic parts of enclosure (Passed)
2 Joule for tempered glass windows (Passed)
